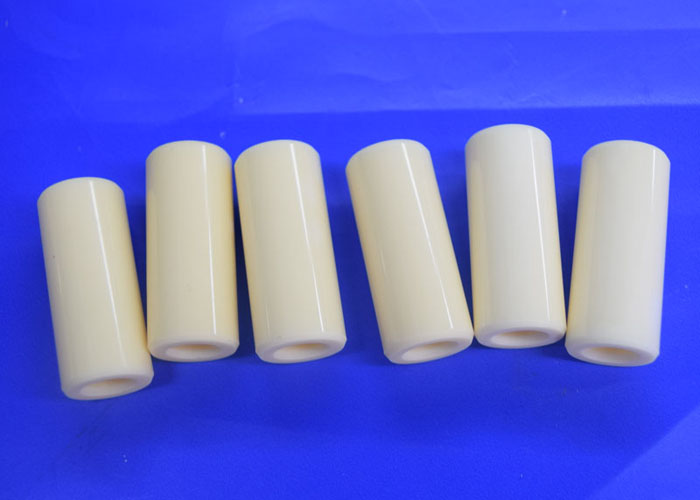

General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm

Brand Name : Mr

Model Number : XF-502

Certification : ISO9001, ,etc

Place of Origin : China

MOQ : 10 pcs

Price : $0.9 - $10.5 per piece

Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 pcs per week

Delivery Time : 3-30 working days

Packaging Details : 1 piece /foam bag, tens of tubes packed in a carton box with sponge paper.

Name : ceramic piston

Material : 99% alumina ceramic

Density : 3.9g/cm3

hardness : HRA 89

Application : For General pump repair kits

Size range : 13mm 18mm 20mm or custom

Forming way : Isostatic press

Color : White , ivory or custom

Sample : Available

Contact Now

General Pump Repair Kits Ceramic Piston / Ceramic Plunger 13mm 18mm

Tag key words : General Pump Ceramic Piston

Use this 8.703-191.0 18mm ceramic plunger on General Pump EZ and TX Series pump models shown below. A cracked or broken General Pump Ceramic Piston can allow water into the pump crankcase, reducing lubrication and possible pump damage. A broken ceramic plunger can also sometimes be seen by a slight water leak between the pump body and pump manifold. Failure to replace a broken ceramic piston can result in further damage to pump, pump seals, unloader valves, and other pressure washer parts.

General Pump Part 44040109

General Pumps: TX1810E179, TX1812E179, EZ2542E, EZ2542S, EZ3042S

REPLACES PART NUMBERS: 1-44040109, 104804, 87031910

Valveless Design The valveless feature of the Ceramic pump is its most significant feature. There are typically four check valves present in diaphragm, bellows, and traditional piston pumps. Even during normal operation, these will wear over time and not seal properly allowing backflow. As a result, accuracy drifts and minimally the pumps need recalibration. Eventually, the check valves need to be serviced.
Ceramic Internals The Ceramic pump uses sapphire-hard ceramics for both the piston and mated liner. These components are dimensionally stable in that they will not change shape or dimension over time. Therefore, the pumping chamber remains stable for millions of dispenses without downtime or recalibration. In addition to dimensionally stable they are chemically inert which allows our pump to work in a greater variety of chemicals.
Accuracy & Precision Throughout the pumping cycle the inlet and outlet ports of the Valveless Metering Pump are never interconnect ensuring accurate fluid flow in one direction preventing any backflow (without check valves). As a result pumps accuracy is held from microliters to the full flow range and output does not change more than ± 1% of set value. Inaccurate pumps can generate waste and incur extra costs.

General Pump Ceramic Piston Performance:

Alumina Content	Unit	80-85%	90-96%	> 99.5%	99%
General Application		Lower Cost Electrical & Mechanical	High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing	Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance	Porous, Easily Degassed & Machinable
Porosity	%	0-.05	0-.05	0-.05	Variable
Density	gm/cm³	3.45-3.50	3.55-3.75	3.75-3.95	2.4
Flexural Strength	kpsi	35.0-40.0	40.0-50.0	50.0-55.0	-
Comprehensive Strength	kpsi	260.0	> 300.0	> 300.0	-
Tensile Strength	kpsi	15.0-20.0	20.0-28.0	20.0-28.0	-
Linear Coefficient of Thermal Expansion	(cm/cm/°C) 25-300°C 25-700°C	5.9X10^-6 6.5X10^-6	6.3X10^-6 7.0X10^-6	6.5X10^-6 7.5X10^-6	6.5X10^-67.5X10^-6
Dielecctric Constant at 25°C	1 MH 10 MH	8.5-8.9 8.4-8.8	9.2-9.8 9.0-9.6	9.5-9.9 9.3-9.7	-
Dielectric Strength	Volt/mil	200	225	225	-
Te Value	°F °C	1472 800	> 1832 > 1000	> 1832 > 1000	> 1832 > 1000
Thermal Conductivity at 25°C	cal/sec/cm²/cm/°C	.03-.04	.04-.06	.07-.08	-
Safe Use Temperature	°F °C	2550 1400	3000-3100 1650-1700	3275 1800	3275 1800

ABOUT US

Ming Rui Ceramics Limited has been specializing in the manufacture of Zirconia ceramics part and Alumina ceramic parts used in medical instruments,textile machines, e-cigarattes, dispensing machines, lithium battery, auto mobile, petrochemical industry and other high temperature and corrosive conditions for over 10 years. Consistent quality, dependable support and delivery, and innovative solutions have enabled us to expand our business world wide. General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm

Our Worshop:

General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm

Other related products:

Except alumina ceramic piston pump, we also supply zirconia ceramic tube, rod for normal use, also have ceramic substrate, ceramic plate, ceramic bush, ceramic sleeve, valves, ceramic shafts, nozzles, etc.Welcome you to contact us for more information!
