Wear Resistance Zirconia Ceramic Threaded Rod , Alumina Threaded Rod And Screws

Name: Wear Resistance Zirconia Ceramic Threaded Rod Alumina Threaded Rod And Screws
Brand: Customer's requirment
Price: 1 USD

Buy cheap Wear Resistance Zirconia Ceramic Threaded Rod , Alumina Threaded Rod And Screws product

Brand Name : Customer's requirment

Model Number : Custom

Certification : ISO2008, ROHS, TUV, CE

Place of Origin : Guangdong, China(mainland)

MOQ : 5 PCS

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 4500 pcs per month

Delivery Time : 13-30 working days after receiving deposit

Packaging Details : Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Product name : Zirconia ceramic threaded rods and screws

Material : Zirconia / alumina ceramic

Color and Size : White, ivory, Customized

HV Hardness : 1300 - 1650 Mpa

Compressive Strength@Room Temperature : 2000 - 2200 Mpa

Flexural Strength @ Room Temperature : Mpa / 280 ( 95 alumina ), 310 ( 99 alumina ), 950 ( zirconia )

Heat Conductivity @ Room Temperature : W / m * k / 18 - 25 ( 95 alumina ), 26 - 30 ( 99 alumina ), 2.0 - 2.2 ( zirconia )

Max Application Temperature : ℃ / 1500 ( 95 alumina ), 1750 ( 99 alumina ), 1050 ( zirconia )

Fracture Toughness : Mpa * m½ / 3.8 ( 95 alumina ), 4.2 ( 99 alumina ), 10 ( zirconia )

Application : Industrial zirconia ceramic threaded rods and screws

Contact Now

Wear Resistance Zirconia Ceramic Threaded Rod , Alumina Threaded Rod And Screws

Product Description

Advantages of Zirconia ceramic threaded rods and screws:

1. Refractory.
2. Long Service Life.
3. High polishing surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

High hardness, long service life, not easy to break and wear resistance.
Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

They deliver 10 times longer working life than metal rods / tubes.

Properties Sheet:

Properties	Units	95 Alumina	99 Alumina	Zirconia
Density	ɡ / cm³	3.65	3.92	5.95 - 6.0
Water Absorption	％	0	0	0
Coefficient of Thermal Expansion	10^-6 / K	7.9	8.5	10.5
Modulus of Elasticity Young’s Mod	Gpa	280	340	210
Poisson’s Ratio	/	0.21	0.22	0.3
HV Hardness	Mpa	1400	1650	1300 - 1365
Flexural Strength @ Room Temperature	Mpa	280	310	950
Flexural Strength @ 700℃	Mpa	220	230	210
Compressive Strength@Room Temperature	Mpa	2000	2200	2000
Fracture Toughness	Mpa * m^½	3.8	4.2	10
Heat Conductivity @ Room Temperature	W / m * k	18 - 25	26 - 30	2.0 - 2.2
Electrical Resistivity @ Room Temperature	Ω*mm² / m	＞10¹⁵	＞10¹⁶	＞10¹⁵
Max Application Temperature	℃	1500	1750	1050
Resistance to Acid Alkaline	/	High	High	High
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV / mm	16	22	/
Thermal Shock Resistance	Δ T ( ℃ )	220	180 - 200	282 - 350
Tensile Strength @ 25℃	Mpa	200	248	252

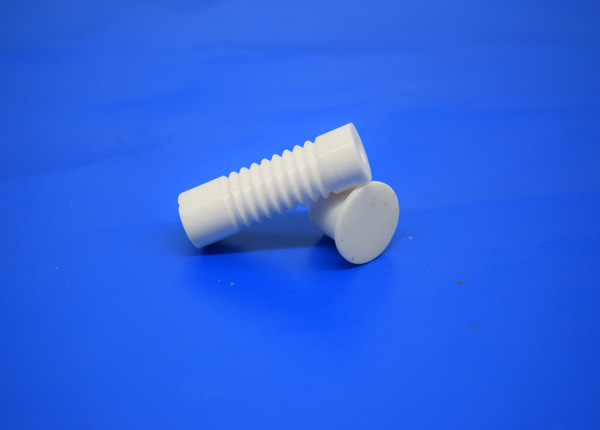

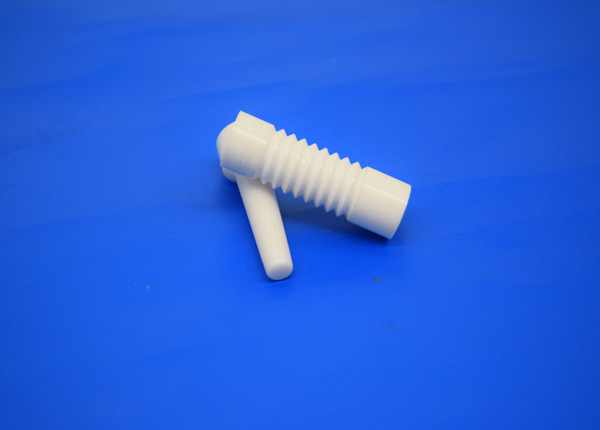

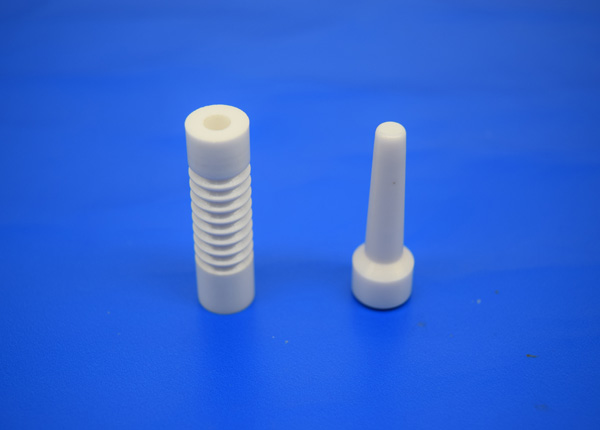

Detailed Images

Wear Resistance Zirconia Ceramic Threaded Rod , Alumina Threaded Rod And Screws

Related Products

Packaging and Shipping

Zirconia ceramic threaded rods and screws will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

Wear Resistance Zirconia Ceramic Threaded Rod , Alumina Threaded Rod And Screws

Company information

Who Are We?

Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

What Do We Do?

We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

Our products with some certificates, such as , CE, TUV, etc..

Factory Show

Production Process Show

One-stop production, from the raw material powder to final product.
